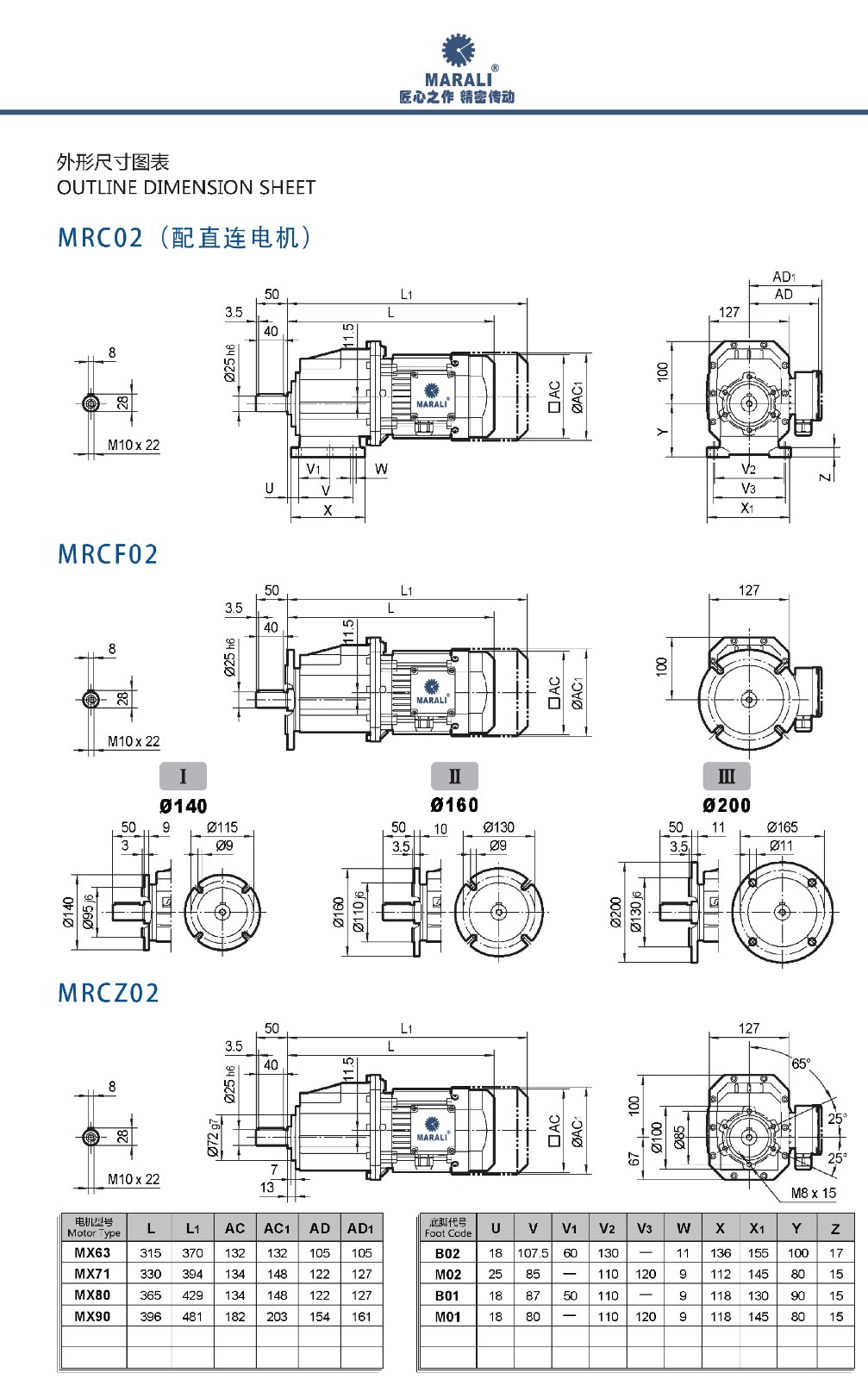

There are 6 models, MRC01 to 06, with power of 0.12-11kw, speed ratio of 3.66-59, and maximum torque of 120-1550nm; According to customer requirements for any combination (foot, single and double flange, single and double shaft) and a variety of installation options

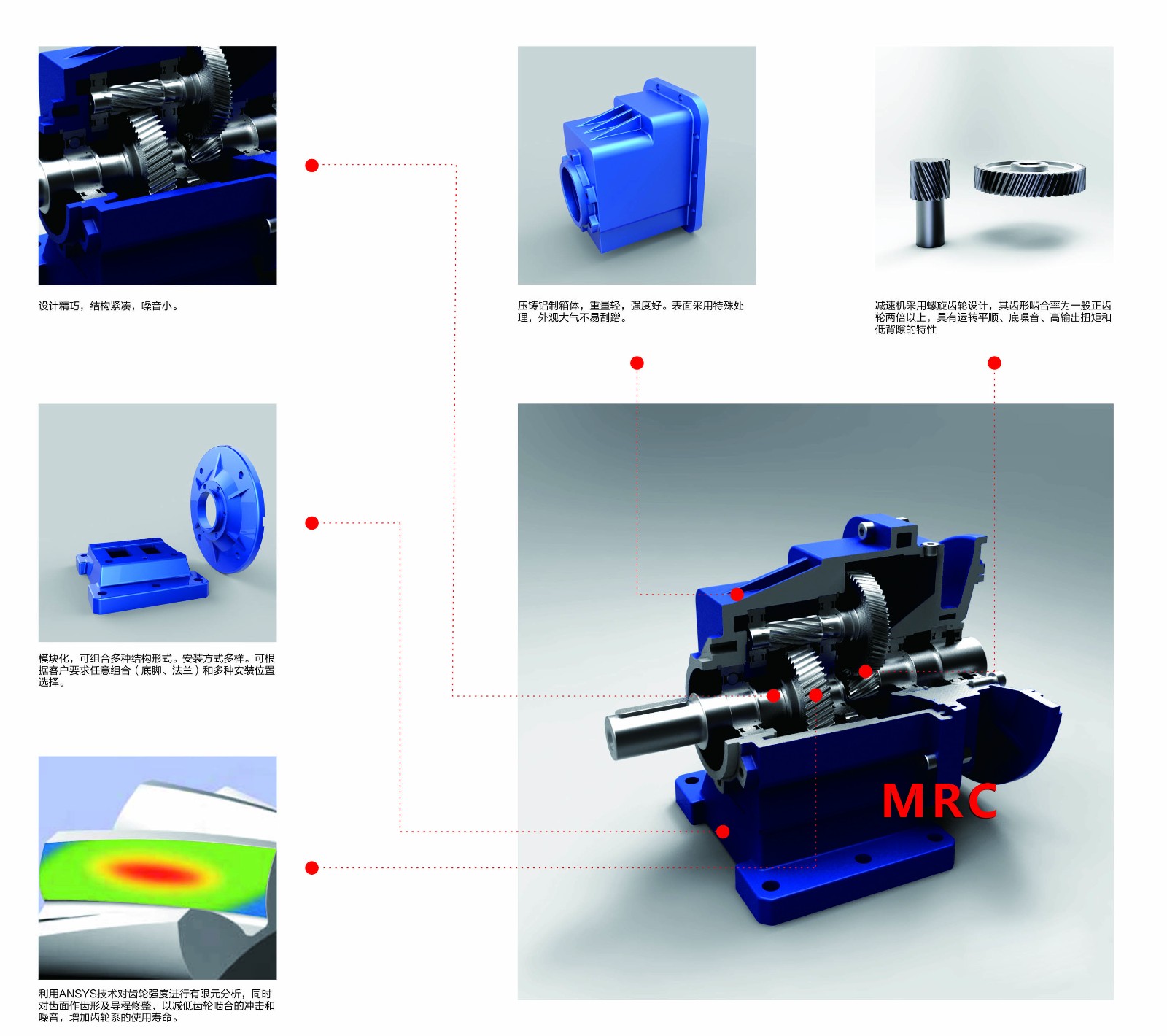

Products features
1. Helical gear transmission of grinding hard tooth surface is durable, strong torque, high efficiency, smooth transmission and low noise, aluminum module box is light weight and high strength

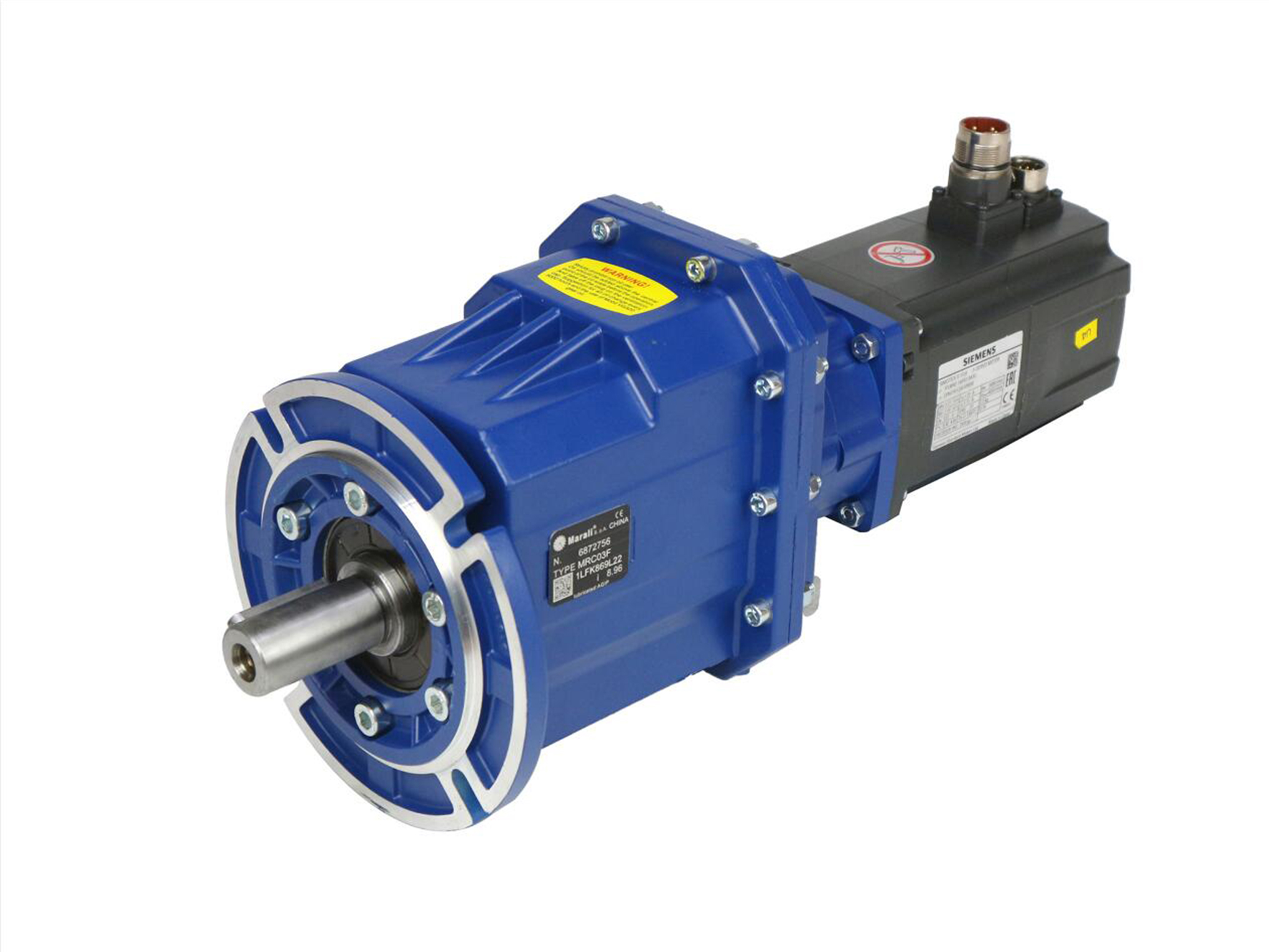

2. Carburized tooth grinding surface, high precision and low back clearance, perfect combination with standard IEC, servo, brake, frequency conversion and other motors
3. ANSYS analysis (FEA) software is used to conduct finite light analysis on the strength of the gear, and at the same time, the gear and lead trimming are conducted to reduce the impact and noise of the gear teeth and increase the service life of the gear system
