Products overview

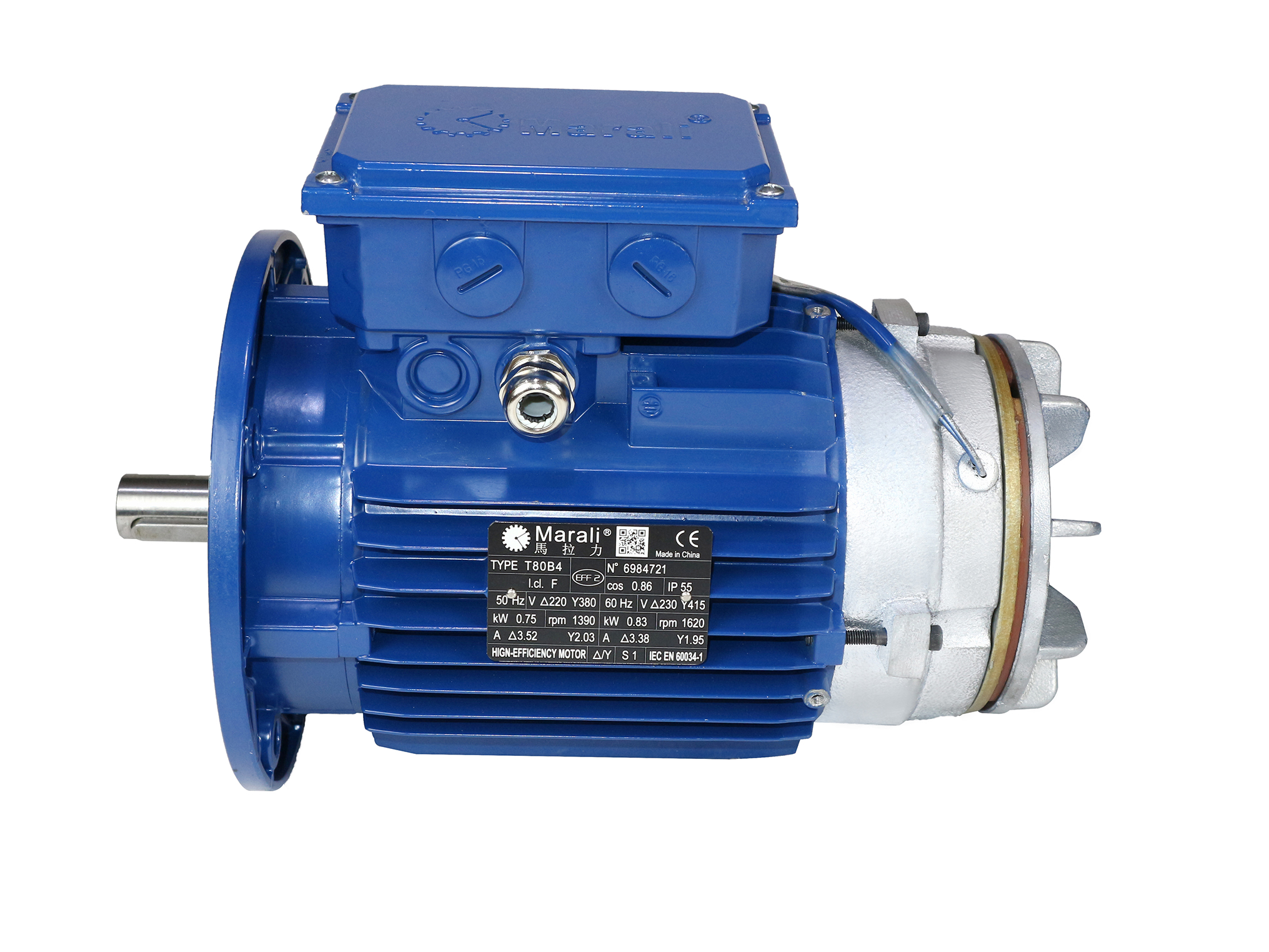

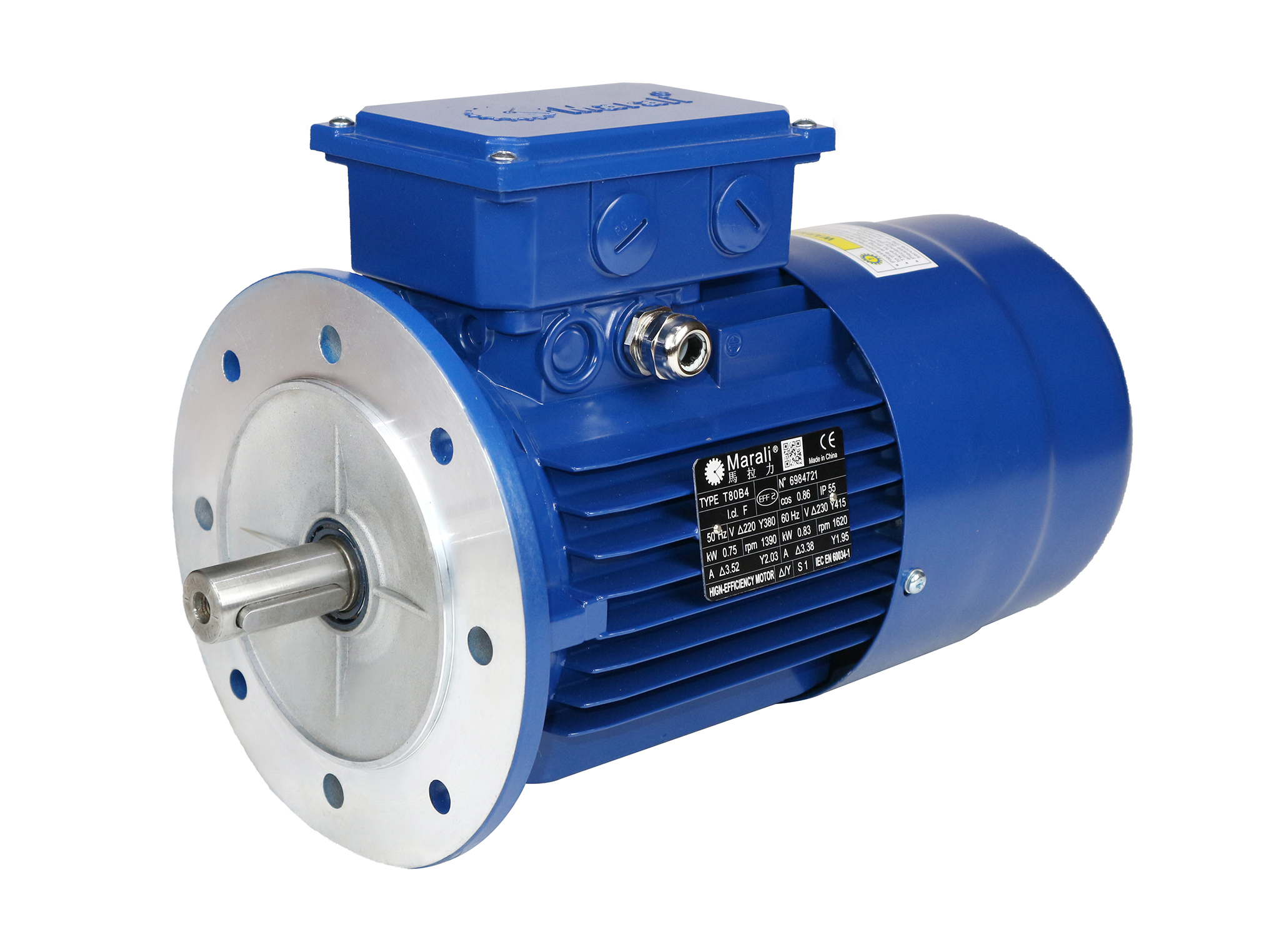

1. Power: 0.18 ~ 225KW, aluminum alloy die-casting shell and cast iron material are optional

2. The brake motor USES a three-phase power supply, which is converted by the rectifier and then supplied to the DC power supply to the brake

3. F-class insulation, resistance to 155℃ high temperature, h-class resistance to 200℃ high temperature, protection class IP55,IP65

4. Low brake noise and low impact; Positive and negative rotation can effectively achieve accurate brake braking
5. Voltage :(220/380v /415V/480V)

6. Revolutions: 1400 revolutions at 4 poles, 890 revolutions at 6 poles, 2800 revolutions at 2 poles
7. Brake brake plate is made of high-strength steel, friction plate is made of materials with high friction coefficient and long life

CCC,IEC and CE certification.

9. Extremely strong parking brake performance, tail brake device can be manually released. High, accurate positioning, suitable for reciprocating operation, instant stop, prevent sliding deviation and other machinery, brake parts are sufficient, 5-10 years will not affect the problem of after-sales service.
