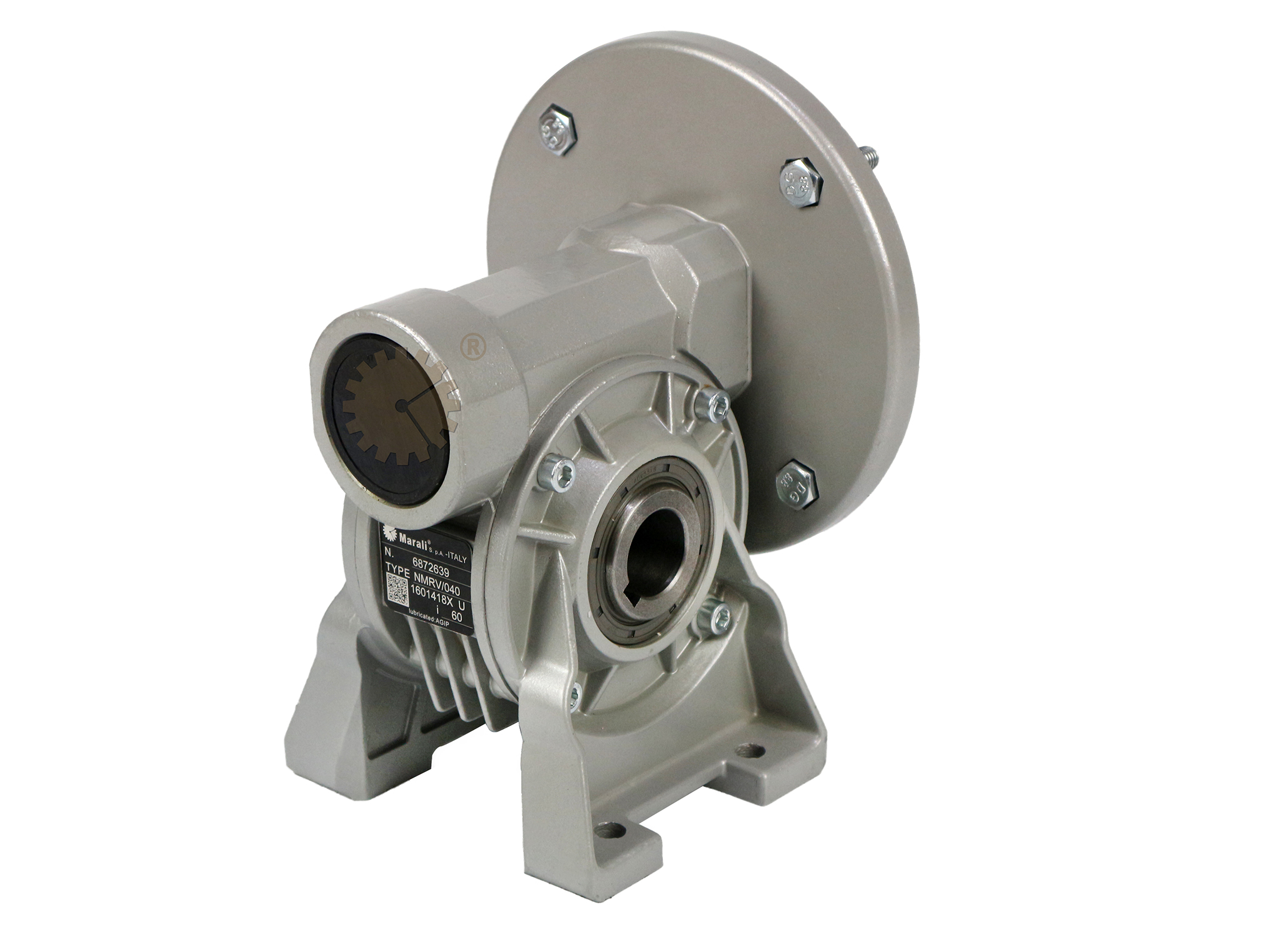

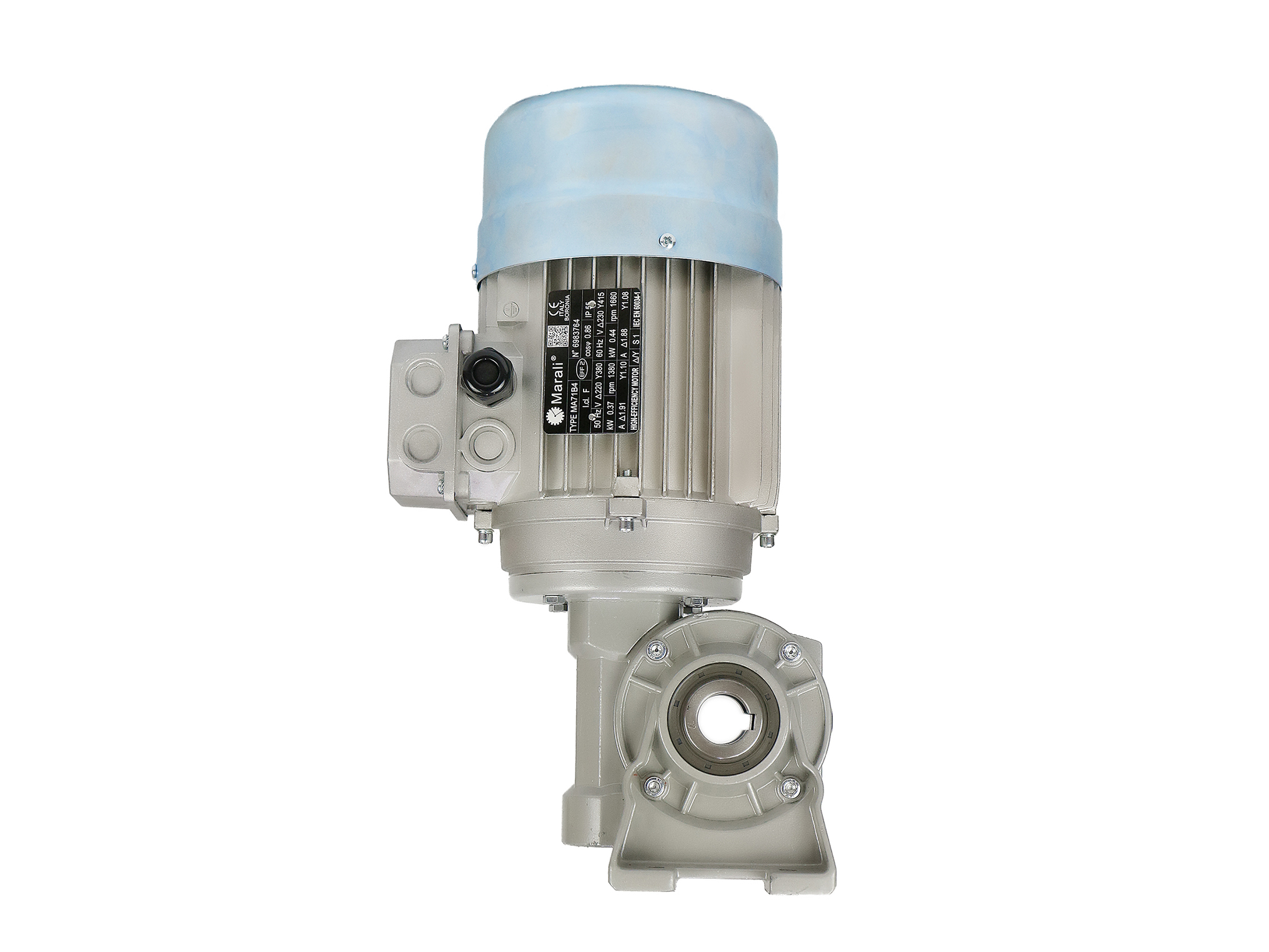

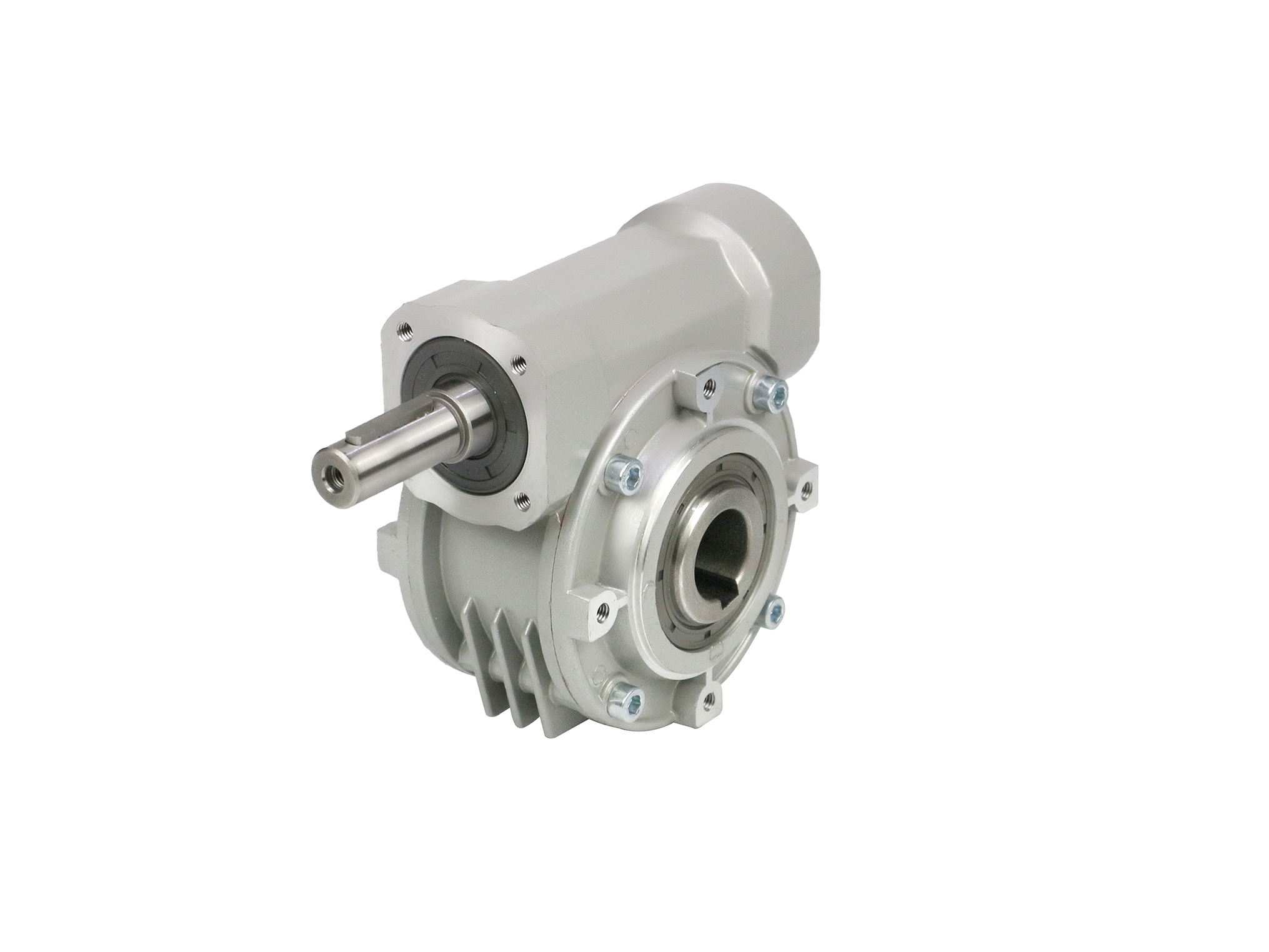

MVF series worm gear and worm reducer motor is a global best-selling transmission products, convincing quality and cost-effective favored by customers; This series of round box design has a variety of installation forms, providing users with absolute flexibility. We also provide double worm gear and worm two-stage deceleration group combination (for you to create a versatile driving system)

Products features

1. Deceleration ratio 7:1 ~ 10,000:1

2. Can be equipped with 25W ~ 15KW motor, torque range of 7-1800nm bovine meters

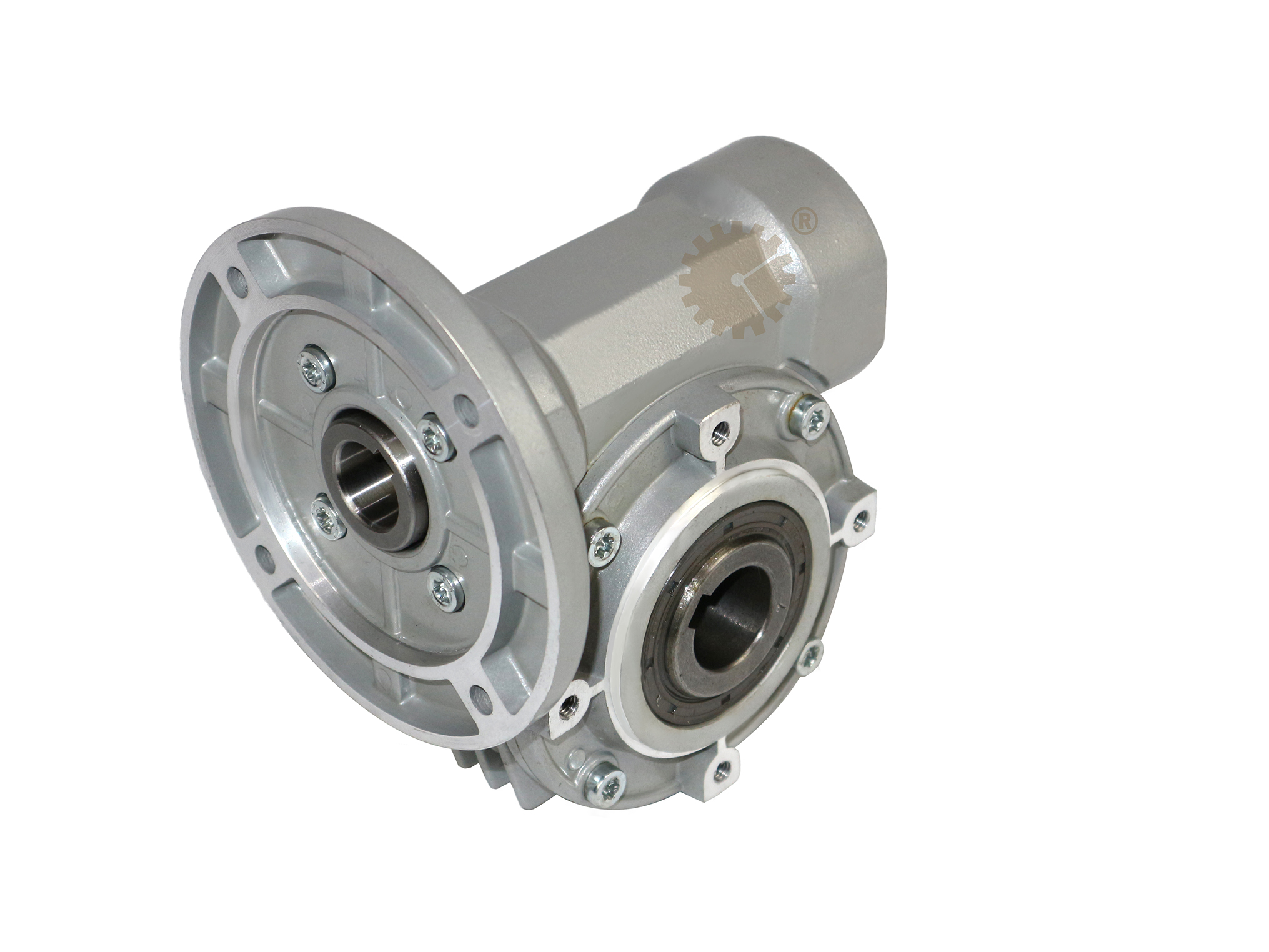

3. Model MVF30,44,49,63,72 is an aluminum alloy shell with permanent lubricating oil inside AGIP TSF, free of maintenance

4. Model MVF86,110,130,150 is cast iron housing with built-in lubricating oil, AGIP BLASIA 460

5. Allowable external temperature: -5°C ~ +80°C

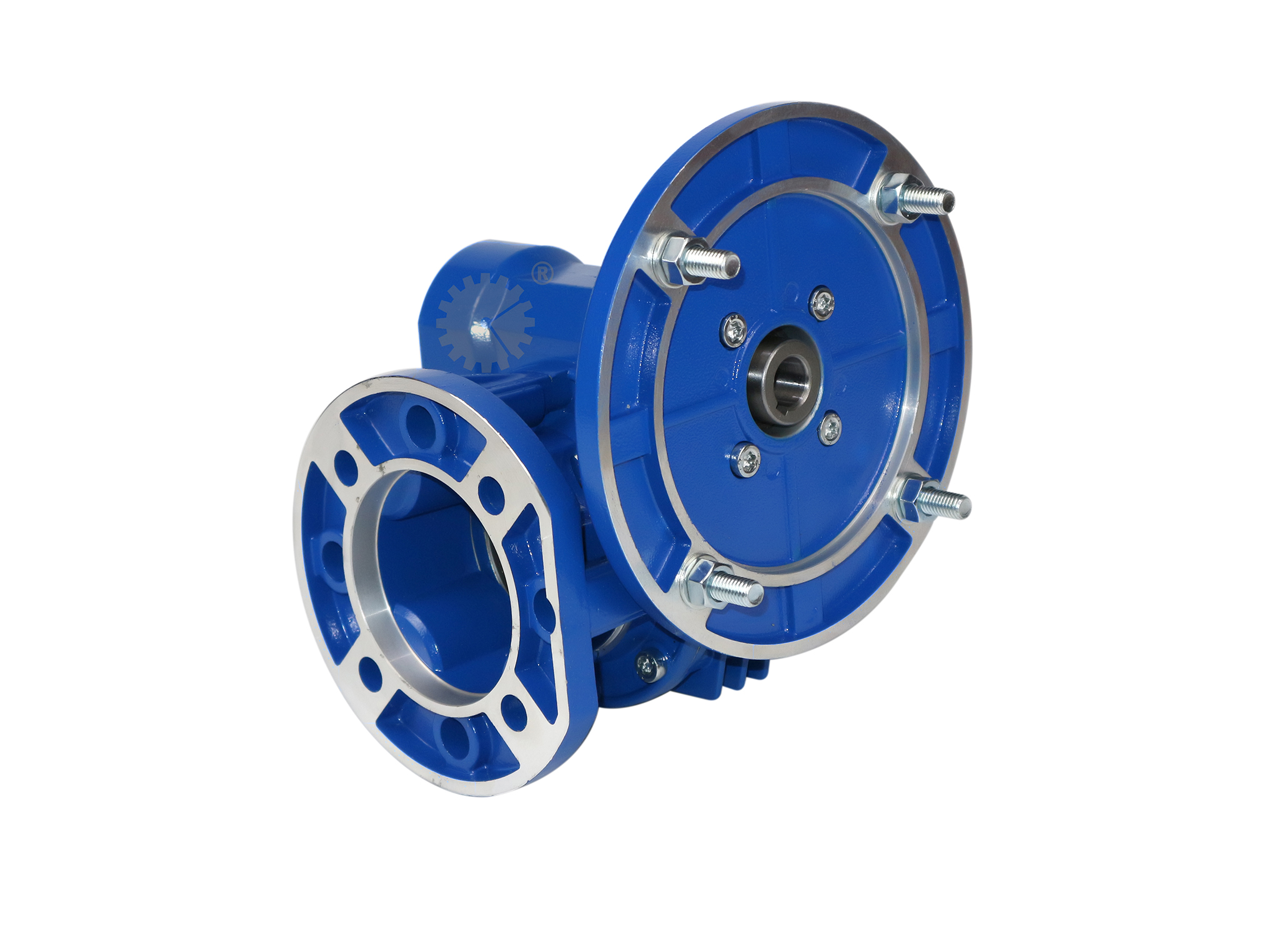

6. Unique powder spraying technology blue RAL5010 or silver white paint, anti-corrosion and oxidation

The deceleration ratio above 7.100 can be realized in the form of PC or dual-assembly deceleration unit

Main materials

Worm material: titanium alloy steel case hardened tempered 20MrCr5 steel (UNI 8550).

Worm gear material: tin bronze GCu sn12-2 (uni7013-72)
